Infranor FC Slotless Servo Motor

FC Slotless Servo Motor

Brochure Downloads Request a Quote

The Mini Series

The FC series is our smallest range of slotless motors. The slotless technology allows for extremely smooth motion at very fast speeds. Combine all these benefits along with its size and you get a very compact and capable solution for handheld applications or space-constrained projects.

Infranor bullet Logo 3D CAD files can be found HERE.

Features
  • Slotless Stator
  • High Speeds
  • Very Compact
  • Low-Medium Inertia
Range
  • Stall Torque: 0.16 - 0.35 Nm
  • Frame Size: 25 - 40 mm
  • Winding: 24 - 48 Vdc
Compliance
  • CE Certification



Applications
  • Handheld Tools
  • OEMs

  • 3D Printers
  • Animatronics
Technical data
  Stall values Peak values Winding Rotor
  Torque Current Torque Current Speed* Resistance Inductance Inertia
M0 I0 Mmax Imax Nmax Ω L J
[Nm] [Arms] [Nm] [Arms] [rpm] [Ohm] [mH] [Kg.m^2]
FC-12 0.16 1.20 0.96 7.39 4,000 14.2 1.9 0.000001
FC-13 0.20 9.09 1.20 54.55 20,000 0.17 0.03 0.000003
FC-34 0.35 14.0 2.10 84.0 20,000 0.126 .037 0.00001

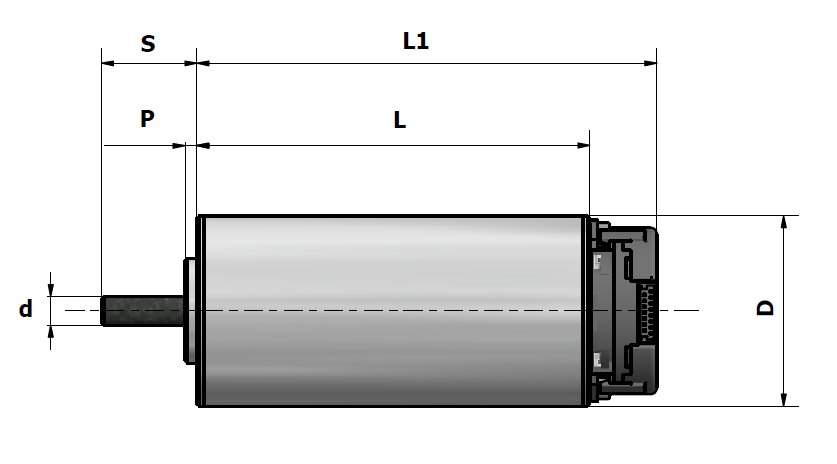

Mechanical Dimensions

Infranor FC Slotless Servo Motor

  Frame Size Shaft Length W Halls Length W Encoder
  D d S P L L1
  [mm] [mm] [mm] [mm] [mm] [mm]
FC-12 25 5 h6 16 1.5 100 115
FC-13 32 6 h6 15 1.5 70 87
FC-34 40 6 h6 20 2.5 82.5 97

3D CAD files can be found HERE.

Versions and Options
Standard Version
  • HES Feedback
  • Shaft With No Keyway
  • Flying Lead Cables
  • CE Compliance
  • Protection IP-54
Standard Options
  • Encoder: Incremental + Halls
  • Sensorless Feedback
Customized Versions
  • Windings
  • Shafts (i.e D Shafts)
  • Frameless Motors
  • Customer Specific
